"NC" Hi-Frequency BEACON

NC Hifer Transmitter

V 2003.02

The current  NC Hifer  transmitter consists of a VHF Motorola  Mitrek TX channel element.  The element uses a crystal in the 12 to 14 MHz range which is multiplied by 12 for the VHF band.   These  channel  elements  are  normally  fairly  stable  with  the  original  crystal.  However if the element is recrystaled without sending it to the crystal manufacture for temperature compensation they are not likely to be frequency stable with temperature changes.  So far I've seen this element drift +/- 50 Hz of the crystal frequency of 13.5555 KHz with day/night temperature changes.  I'm considering plotting a freq / temp graph and call the unit a wireless thermometer.

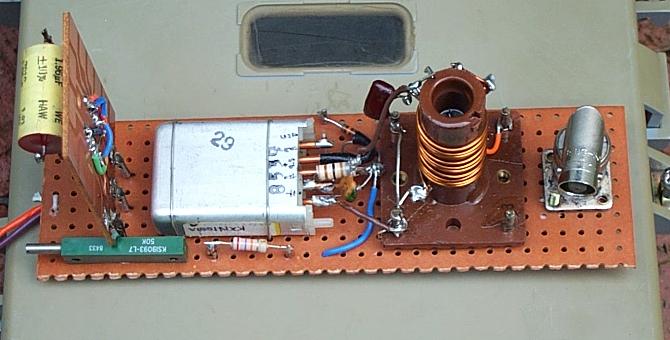

The high impedance output of the oscillator is lightly coupled to the top of a parallel LC network.    This circuit provides easy matching to the coax output and harmonic filtering.  The coupling capacitor value was selected to provide 2 milliwatts of output power measured at the 50 ohm output connector.

The square wave is produced by a 555 timer chip which slightly varies the oscillator's regulated 9.5 volt supply.  Shift is adjusted with the 50K multi turn pot.  A small IC keyer may be added later but for now I wanted to stay with readily available parts so that I won't worry about disconnecting the beacon every time a thunderstorm pops up.  (Nearly every day so far this summer)

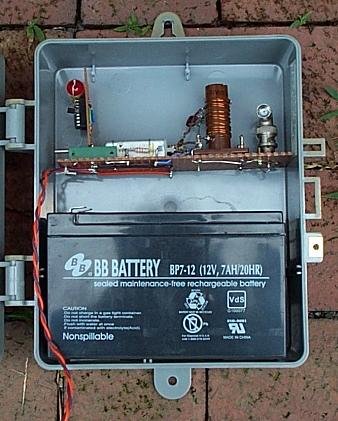

The transmitter is mounted in a recycled PVC box and is presently powered by a battery.   A fully charged battery should power this circuit for about a month but  a small solar panel may be added.

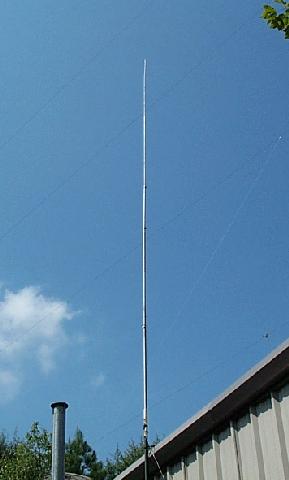

The Hifer antenna is a simple 1/4 wave vertical.  The metal building serves as a ground plane.

First day of operation - 20 May 2001


Reports received on first day by:

                    Steve McDonand        British Columbia
                    Mike Reid                    Minnesota
                    Lyle Koehler                Minnesota
                    John Andrews             Massachusetts
                    Paul Cianciolo             Connecticut
                    Jonathan Jesse           Massachusetts
                    John Reed                  Oklahoma
                    Jim Shaffer                  Illinois
                    Denis Cote                  Massachusetts
                    Phil Atchley                 California
                    Mitch Powell                Ontario
                    Bill Ashlock                  Massachusetts

First Reception in JASON Mode made by Nick, W5FUA, Austin, Texas on 14 July 2002

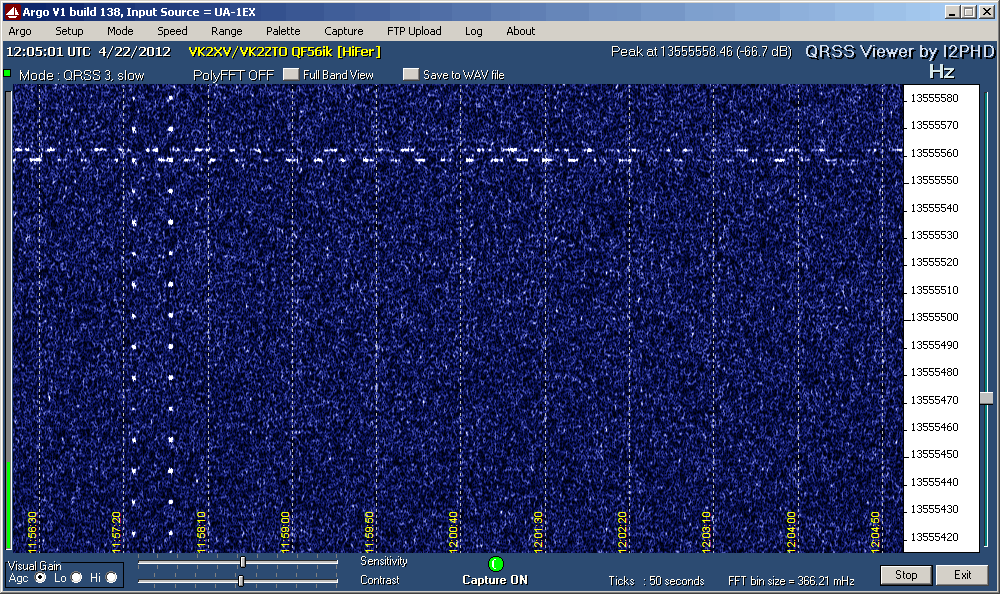

Roger Thompson, Smithville, Mississippi - Argo copy of Square Wave on 11 Jan 04


Best DX

 Steve Olney, VK2XV / VK2ZTO,

North Richmond NSW 2754 Australia

22 April 2012  9566 miles (15395 km)




Other DX

Laurence Howell KL7UK / 3D2K1 Pacific Harbor, Fiji

 26 June 2004 7417.9 mi (11938.0 km)


Peter Knol, PA1SDB, Appingedam
NETHERLANDS on 13 June 2004


On 6 February 2004 NC HiFER made a temporary moved to 13.556 MHz for a test running normal CW at approximately 10 WPM.  First report came from Lyle Koehler shortly thereafter.  For current frequency and mode click here to see the

 Beacon Status Page


NC HiFER Reception Reports while sending 10 WPM CW


06 February 2004 Lyle Koehler, KØLR Aitkin, Minnesota 1035 miles
06 February 2004 Lewis Denton, WA4LIP Mobile, Alabama  553 miles
07 February 2004 John Andrews, W1TAG Holden, Massachusetts  671 miles
17 February 2004 Tom Lau, N8TL Findlay, Ohio  438 miles
21 February 2004 David Tomasko, K9QU Downers Grove, IL  611 miles
